ローダーとドーザータイヤ

ホットセール中国ローダーとドーザータイヤメーカーとサプライヤー。 Linglongは、中国のローダーおよびドーザータイヤメーカーおよびサプライヤーです。

お問い合わせを送信

製品説明

Linglong is professional Loader and Dozer Tire manufacturer and supplier in China. Buy sample Loader and Dozer Tire with discount from LINGLONG.

Conditions of use of loaders are very diverse, due to the size of machines and the diversity of the tasks assigned to them. The range of LINGLONG bias tires for loaders provides you a solution adapted to your work.

LL25

E-3/L-3 Bias

■Strong tire casing offers strength needed in a loader application

■Suitable for rocky or gravel surface in mines, quarries and construction sites

■Excellent performance and maneuverability on wet, soft or muddy surface

Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
16/70-20	14	L-3	13(SDC)	410	1075	17	5150	450	2900	350	TT
15.5-25	12	E-3/L-3	12.00/1.3	395	1275	25	5600	400	3250	250	TL
17.5-25	12	E-3/L-3	14.00/1.5	445	1350	25.5	6150	350	3650	225	TL/TT
	16	E-3/L-3	14.00/1.5	445	1350	25.5	7300	475	4250	300	TL/TT
	20	E-3/L-3	14.00/1.5	445	1350	25.5	8250	575	5000	400	TL/TT
	28	E-3/L-3	14.00/1.5	445	1350	25.5	10300	825	6150	550	TT
20.5-25	16	E-3/L-3	17.00/2.0	520	1490	28.5	8250	350	5450	275	TL/TT
	20	E-3/L-3	17.00/2.0	520	1490	28.5	9500	450	6000	325	TL/TT
	24	E-3/L-3	17.00/2.0	520	1490	28.5	10300	525	6700	400	TL/TT
	28	E-3/L-3	17.00/2.0	520	1490	28.5	11500	625	7500	475	TT
23.5-25	16	E-3/L-3	19.50/2.5	595	1615	31.5	9500	300	6150	225	TL/TT
	18	E-3/L-3	19.50/2.5	595	1615	31.5	10500	350	6700	275	TT
	20	E-3/L-3	19.50/2.5	595	1615	31.5	10900	375	7300	300	TL/TT
	24	E-3/L-3	19.50/2.5	595	1615	31.5	12500	475	8000	350	TL/TT
26.5-25	20	E-3/L-3	22.00/3.0	675	1750	35	13200	350	8250	250	TT
	24	E-3/L-3	22.00/3.0	675	1750	35	14000	400	9250	300	TL/TT
	28	E-3/L-3	22.00/3.0	675	1750	35	15500	475	10000	350	TL/TT
	32	E-3/L-3	22.00/3.0	675	1750	35	17000	550	11200	425	TL/TT
	36	E-3/L-3	22.00/3.0	675	1750	35	20000	725			TT
29.5-25	28	E-3/L-3	25.00/3.5	750	1875	40	17500	425	11500	325	TL
29.5-25	42	E-3/L-3	25.00/3.5	750	1875	40	22600	600	——	——	TL

LL25 E-3/L-3

E-3/L-3

■Strong tire casing offers strength needed in a loader application

■Suitable for rocky or gravel surface in mines, quarries and construction sites

■Excellent performance and maneuverability on wet, soft or muddy surface

Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
17.5-25	12	E-3/L-3	14.00/1.5	445	1350	25.5	6150	350	3650	225	TT
17.5-25	16	E-3/L-3	14.00/1.5	445	1350	25.5	7300	475	4250	300	TT
23.5-25	16	E-3/L-3	19.50/2.5	595	1615	30.0	9500	300	6150	225	TT
	18	E-3/L-3	19.50/2.5	595	1615	30.0	10500	350	6700	275	TT
	20	E-3/L-3	19.50/2.5	595	1615	30.0	10900	375	7300	300	TT/TL
	24	E-3/L-3	19.50/2.5	595	1615	30.0	12500	475	8000	350	TT/TL
	28	E-3/L-3	19.50/2.5	595	1615	30.0	13600	550	8750	400	TT/TL
	32	E-3/L-3	19.50/2.5	595	1615	30.0	14500	625	9750	475	TT/TL

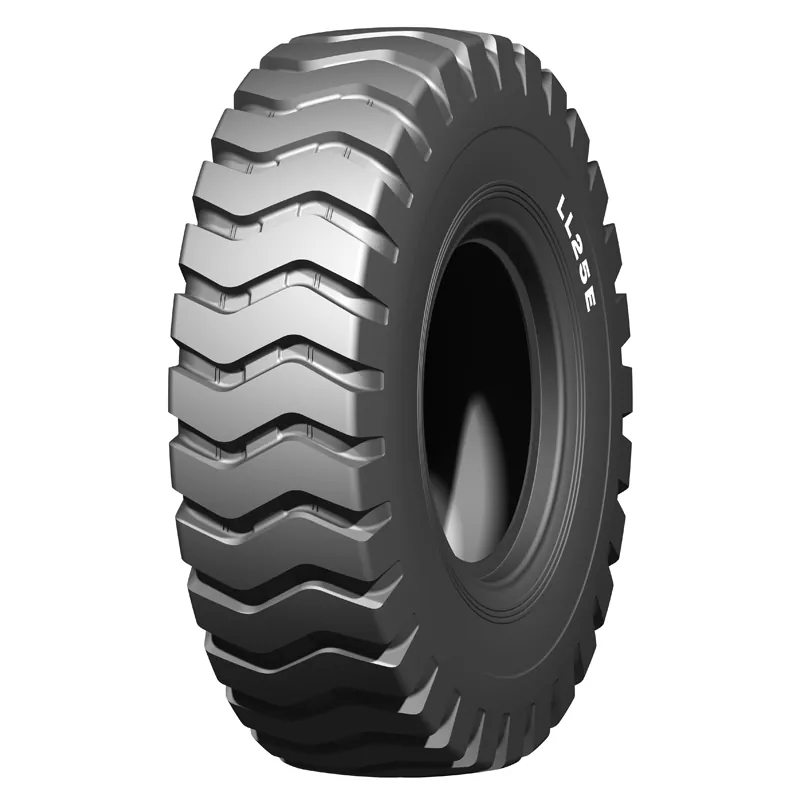

LL25E

E-3/L-3 Bias

■Suitable for rocky or gravel surface in mines, quarries and construction sites

■The unique tire pattern design makes the tire more suitable for the working environment of the loader

■Optimized contour design with lighter tire weight compared with LL25 E-3/L-3, which brings best purchasing economics

Size	Ply rating		TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size	Ply rating		TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
17.5-25	10		E-3/L-3	14.00/1.5	445	1350	25.5	5600	300	3450	200	TT/TL
	12		E-3/L-3	14.00/1.5	445	1350	25.5	6150	350	3650	225	TT
	16		E-3/L-3	14.00/1.5	445	1350	25.5	7300	475	4250	300	TT
23.5-25	16		E-3/L-3	19.50/2.5	595	1615	30.0	9500	300	6150	225	TT
		18	E-3/L-3	19.50/2.5	595	1615	30.0	10500	350	6700	275	TT
		20	E-3/L-3	19.50/2.5	595	1615	30.0	10900	375	7300	300	TT
	24		E-3/L-3	19.50/2.5	595	1615	30.0	12500	475	8000	350	TT

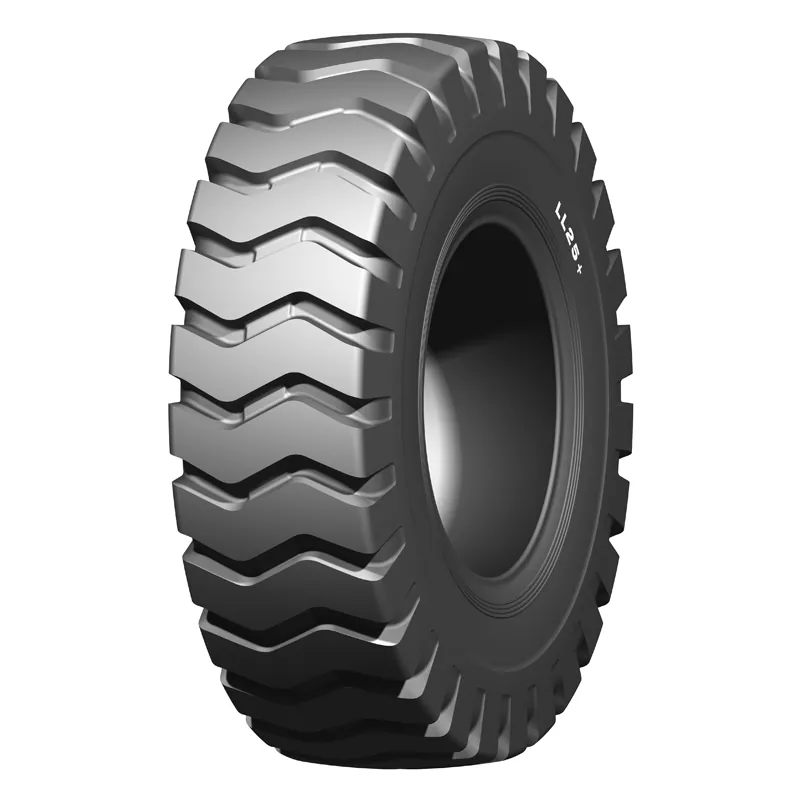

LL25+

E-3/L-3 Bias

■Non-directional pattern for outstanding rough terrain traction

■The very new G3 ultra-cut resistant tread compound gives the tire better wearing ability compared with LL25

■Suitable for rocky or gravel surface in mines, quarries and construction sites

Size

Ply rating

TRA code

Rim

Section width

(mm)

Overall diamter

（mm）

Tread depth

(mm）

10km/h

50km/h

Type

Load capacity

（kg）

Inflation pressure

（kPa）

Load capacity

（kg）

Inflation pressure

（kPa）

23.5-25

E-3/L-3

19.50/2.5

595

1615

31.5

10900

375

7300

300

26.5-25

E-3/L-3

22.00/3.0

675

1750

35.0

15500

475

10000

350

LL306

E-3/L-3 Bias

■Strong nylon construction provides superior load capactity

■The non-directional tread design provides maximum traction

■Optimized tread pattern design ensures lower tire noise

Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
23.5-25	16	E-3/L-3	19.50/2.5	595	1615	30	9500	300	6150	225	TT
23.5-25	20	E-3/L-3	19.50/2.5	595	1615	30	10900	375	7300	300	TT

LL306+

（Specially designed for low-temperature working conditions!)

E-3/L-3

■ Strong nylon construction provides superior load capacity

■ Special cold-resistant tread compound makes it suitable for working in low-temperature environments

Size			Ply rating			TRA code				Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size			Ply rating			TRA code				Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
23.5-25			20			E-3/L-3				19.50/2.5	595	1615	30	10900	375	7300	300	TT

L301

E-3/L-3 Bias

■Rugged tread design for superior cut protection

■L3+ tread depth design enhances wearing life

■Special tear resistant resin application enhances the cutting resistance of the tread

Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
17.5-25	12	L-3+	14.00/1.5	445	1350	36	6150	350	3650	225	TT
23.5-25	16	L-3+	19.50/2.5	595	1615	45	9500	300	6150	225	TT
	18	L-3+	19.50/2.5	595	1615	45	10500	350	6700	275	TT
	20	L-3+	19.50/2.5	595	1615	45	10900	375	7300	300	TT
	24	L-3+	19.50/2.5	595	1615	45	12500	475	8000	350	TT
	28	L-3+	19.50/2.5	595	1615	45	13600	550	8750	400	TT

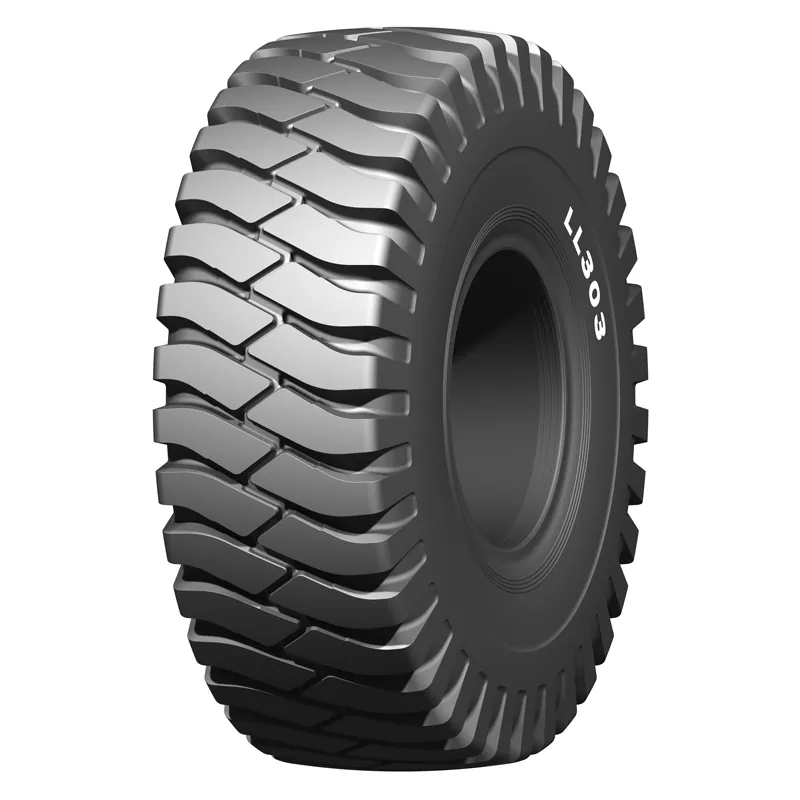

LL303

E-3/L-3 Bias

■Special tread patterns ensure lower vehicles vibration and improved comfort

■High strength casing ply design, improve the impact resistance of the tire

■Special tear resistant resin application enhances the cutting resistance of the tread

Size

Ply rating

TRA code

Rim

Section width

(mm)

Overall diamter

（mm）

Tread depth

(mm）

10km/h

50km/h

Type

Load capacity

（kg）

Inflation pressure

（kPa）

Load capacity

（kg）

Inflation pressure

（kPa）

23.5-25

E-3/L-3

19.50/2.5

595

1615

31.5

9500

300

6150

225

E-3/L-3

19.50/2.5

595

1615

31.5

10900

375

7300

300

LL136

E-3/L-3 Bias

■Strong tire casing offers strength needed in a loader application

■Suitable for rocky or gravel surface in mines, quarries and construction sites

■Excellent performance and maneuverability on wet, soft or muddy surface

Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
17.5-25	12	E-3/L-3	14.00/1.5	445	1350	25.5	6150	350	3650	225	TT
23.5-25	16	E-3/L-3	19.50/2.5	595	1615	31.5	9500	300	6150	225	TT
23.5-25	18	E-3/L-3	19.50/2.5	595	1615	31.5	10500	350	6700	275	TT
26.5-25	24	E-3/L-3	22.00/3.0	675	1750	35	14000	400	9250	300	TL/TT
26.5-25	28	E-3/L-3	22.00/3.0	675	1750	35	15500	475	10000	350	TL/TT

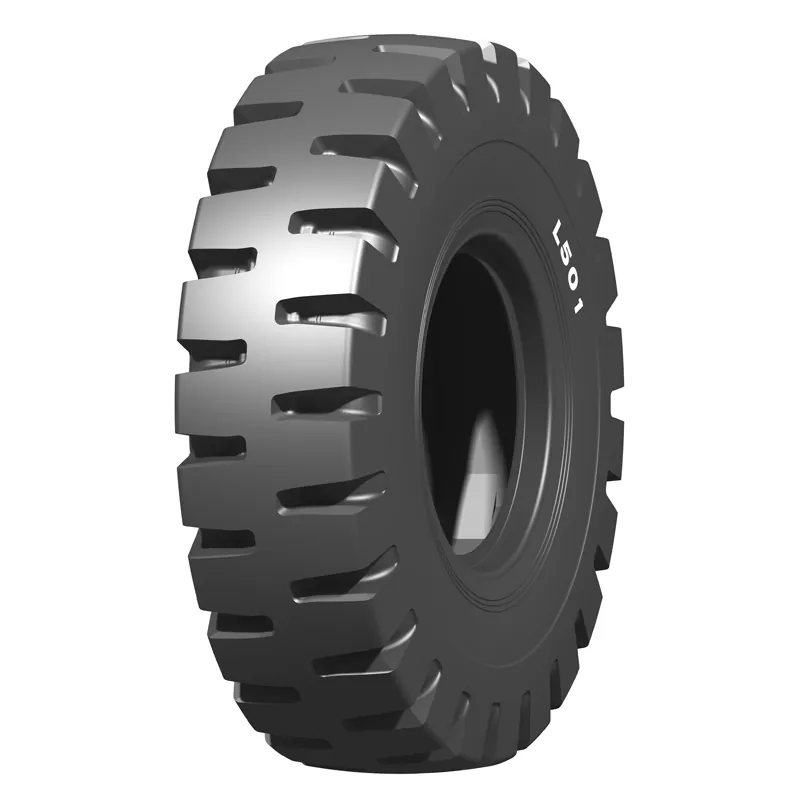

L501

L-5 Bias

■Exceptional cut and impact resistance

■Extra-Deep, special tread compound rubber and shoulder ribs ensure maximun serviceability, excellent traction and stability

■Designed for severe rocky surfaces

Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth(mm）	10km/h		50km/h		Type
Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth(mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
17.5-25	16	L-5	14.00/1.5	445	1350	56	7300	475	——	——	TT/TL
	20	L-5	14.00/1.5	445	1350	56	8250	575	——	——	TT/TL
	28	L-5	14.00/1.5	445	1350	56	---	---	——	——	TT/TL
23.5-25	20	L-5	19.50/2.5	595	1615	78.5	10900	375	——	——	TT/TL
	24	L-5	19.50/2.5	595	1615	78.5	12500	475	——	——	TT/TL
	40	L-5	19.50/2.5	595	1615	78.5	13600	550	——	——	TT/TL
26.5-25	28	L-5	22.00/3.0	675	1750	87.5	15500	475	——	——	TT/TL
	32	L-5	22.00/3.0	675	1750	87.5	17000	550	——	——	TT/TL
	40	L-5	22.00/3.0	675	1750	87.5	---	---	——	——	TT/TL

LL26

E-3 Bias

■Classic non-directional tread pattern design, suitable for variety of road conditions

■Special cold-resistant tread compound meets the need of low-temperature working conditions

■Mixed tread compound design, balancing wear and cold resistance

Size			Ply rating			TRA code				Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size			Ply rating			TRA code				Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
18.00-25			16			E-3				13.00/2.5	500	1615	30	10000	375	5600	275	TT

E-3/L-3

■Solid centerline tread pattern provides excellent cut resistance, smooth ride and extended wear

■Non-directional tread pattern design provides all-round traction and wear resistance

■Aggressive lug design provides premium performance in harsh conditions

Size			Ply rating			TRA code				Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size			Ply rating			TRA code				Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
29.5-29			28			E-3/L-3				25.00/3.5	750	1975	40	19000	425	12100	325	TL

LL55

E-3/L-3 Bias

■Deeper tread depth provides excellent wear resistance and longer service life

■Multiple rubber and reinforced tread compounds to meet complex operating environments

■Directional tread pattern for excellent power transfer in forward operation

Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	10km/h		50km/h		Type
Size	Ply rating	TRA code	Rim	Section width (mm)	Overall diamter （mm）	Tread depth (mm）	Load capacity （kg）	Inflation pressure （kPa）	Load capacity （kg）	Inflation pressure （kPa）	Type
16/70-20	10	L-3	13(SDC)	410	1075	20	——	——	2400	250	TT
16/70-20	14	L-3	13(SDC)	410	1075	20	5150	450	——	——	TT

L302

E-3/L-3 Bias

■Suitable for rocky or gravel surface in mines, quarries and construction sites

■Excellent performance and maneuverability on wet, soft or muddy surface

■Multiple rubber and reinforced tread compounds to meet complex operating environments

Size			Ply rating			TRA code				Rim	Section width (mm)	Overall diamter（mm）	Tread depth(mm）	10km/h		Type
Size			Ply rating			TRA code				Rim	Section width (mm)	Overall diamter（mm）	Tread depth(mm）	Load capacity （kg）	Inflation pressure （kPa）	Type
20.5/70-16			16			L-3				10.00(SDC)	342	906	17	1600	280	TT
